Where there is no platform to bridge from, this line does the lifting itself: it takes cargo from ground level, raises it to working height and carries it up an incline into the trailer.
- Lifts 40-95 cm
- 3 m incline
- Max working height 2.4 m
- 3 model sizes
Overview
For ground-level loading without a loading dock.
Suits all vehicle body types below 17.5 m semi-trailers, and handles both light and heavy cargo.
This is the line for yards, temporary sites and buildings whose floor simply meets the ground. Instead of asking your crew to lift cargo up to a truck bed, the machine brings the conveyor up to the cargo and carries it in.
It is built around the vehicles that actually arrive on your site, and the height they arrive at.
Lift range & dimensions
| Parameter | Specification |
|---|---|
| Application | For ground-level loading without a loading dock. |
| Lift range / incline / max height | Platform lifts from ground level 40 cm to 95 cm; incline section 3 m; max working height 2.4 m. |
| Vehicle coverage | Suits all vehicle body types below 17.5 m semi-trailers, and handles both light and heavy cargo. |
Model sizes
Three base sizes cover the vehicle fleet below 17.5 m semi-trailers. Each pairs a hydraulic lift / incline section with a telescopic front roller line sized to how far the cargo must travel inside the body.
| Parameter | Specification |
|---|---|

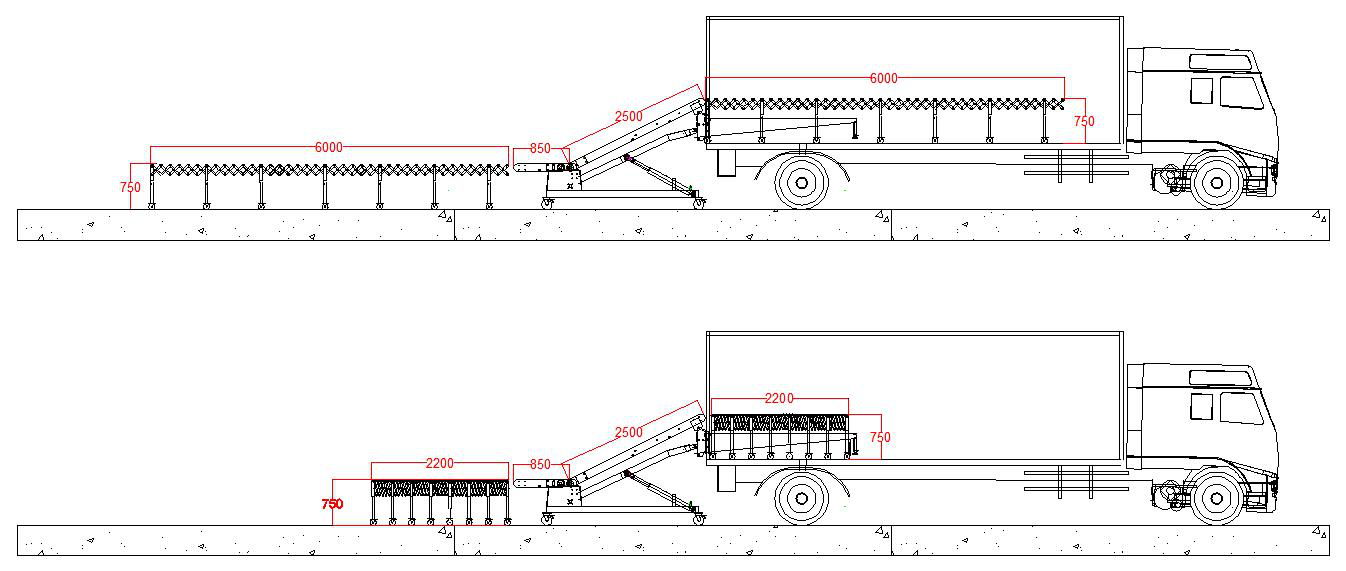

| Small | Trucks under 9.6 m (7.6 / 6.8 / 4.2 / 3.8 m); front 6 m roller line |
| Medium | 9.6 m and above - 20/40 ft containers, 13/14/15 m box or high-side; front 10 m line |

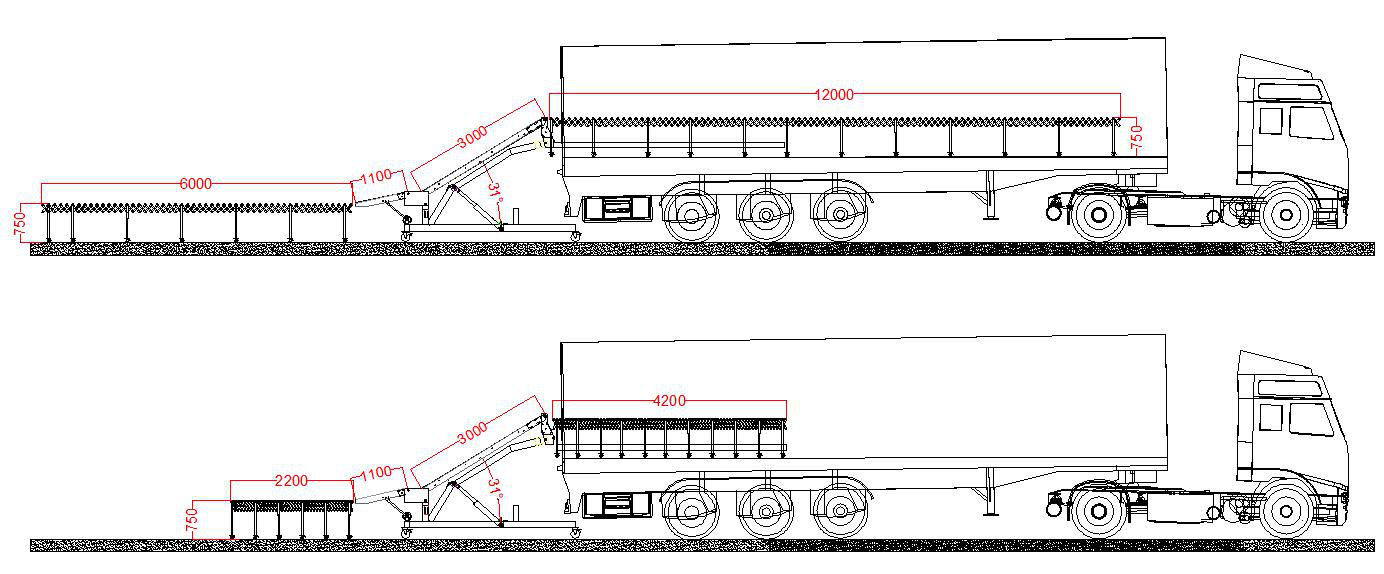

| Heavy | 9.6 m and above, incl. 17.5/18 m box or high-side; front 12 m line |
| Heavy (extended, custom) | 9.6 m and above; front 15 m roller line |
Three sizes (small / medium / heavy) matched to vehicle type; front telescopic roller line up to 15 m (custom extended build).
How it works on the ground
- Position at the tailThe unit is brought to the rear of the truck on its mobile base, no pit or pit leveller required.
- Set the working heightThe platform lifts through the range between your ground level and the truck bed.
- Feed the inclineCargo rides the incline section up and transfers onto the telescopic front line.
- Reach into the bodyThe front roller line carries cargo to the stacking crew and retracts when the truck is full.
Where it is used
Yards without a dock
Warehouses whose only loading face is theground: no capital rebuild, no civil works.
Mixed fleet sites
Operations receiving 4.2 m trucks and 17.5 m trailers at the same door.
Heavy and awkward loads
Sized for light and heavy cargo where lifting to bed height is the bottleneck.
Peak-season overflow
A relocatable line that can be moved to whichever building is under pressure.
Factory dispatch
Finished goods leaving directly from a production floor, straight onto trucks.
Export consolidation
Consolidation sheds where container stuffing happens away from a proper dock.
Configuration drawings
Each size has a reference drawing. They are the fastest way to check whether a model reaches where you need it to before we quote anything.
What we need from you
- Ground-to-truck-bed height at your busiest vehicle
- Longest body length you load, and whether it is box, curtain-side or high-side
- Whether you also load 20 or 40 ft containers, and from ground or dock
- Cargo type and the heaviest single piece
- Yard surface condition where the unit will stand
- Available parking space for the unit when not in use
Hydraulic conveyor FAQ
How high can it lift?
Platform lifts from ground level 40 cm to 95 cm; incline section 3 m; max working height 2.4 m.
Which model size do I need?
Three sizes (small / medium / heavy) matched to vehicle type; front telescopic roller line up to 15 m (custom extended build).
Which vehicles does it cover?
Suits all vehicle body types below 17.5 m semi-trailers, and handles both light and heavy cargo.
Do I need any civil works or a pit?
No. The unit is built to work from the ground, which is the point of this line.
Can the front line be longer than the standard?

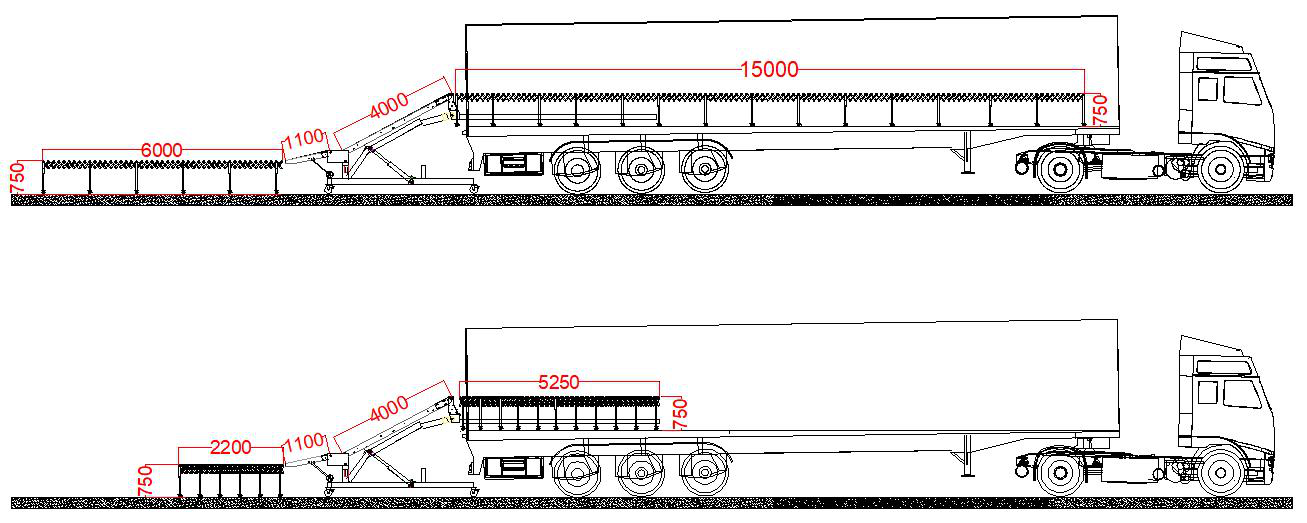

Yes. Longer telescopic front sections are built as custom configurations; the 15 m build shown above is one of them.
